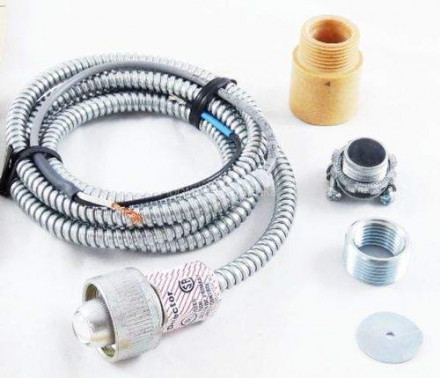

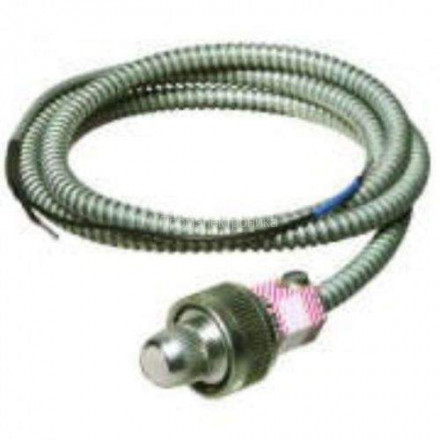

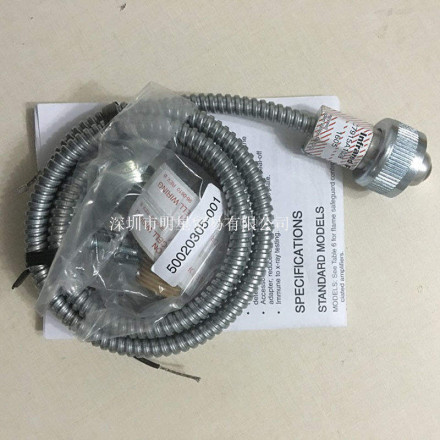

Honeywell C7915A1036 - датчики пламени чувствительные к инфракрасному излучению, возникающему при сжигании топлива, таком как природный газ, нефть и уголь.
Product Specifications
- Application
- Used for combination or dual-fuel applications
- Dimensions (in.)
- 1 1/4 in. diameter x 2 1/4 in. long
- Dimensions (mm)
- 32 mm diameter x 58 mm long
- Includes
- With magnifying lens, 32007255-001 Cell
- Used With
- Flame Amplifiers: R7852
- Comments
- Infrared (Lead Sulfide) Flame Detector
- Mounting
- 3/4 in. NPT
- Approvals, Underwriters Laboratories Inc.
- Listed: File No. MP268, Guide No. MCCZ
- Approvals, Canadian Standards Association
- Certified: Master Report LR95329-1
- Electrical Connections
- Two no.18 AWG wires
- Approvals, Swiss RE
- Acceptable
- Approvals, Factory Mutual
- Approved: Report No. 24181.03
- Ambient Temperature Range (F)
- -20F to 125F operating range
- Ambient Temperature Range (C)
- -18C to 52 operating range
- Lead Length (in.)
- 96 in.
- Lead Length (mm)
- 2438 mm
