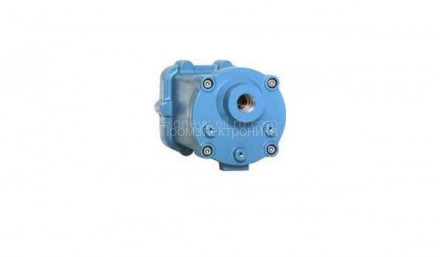

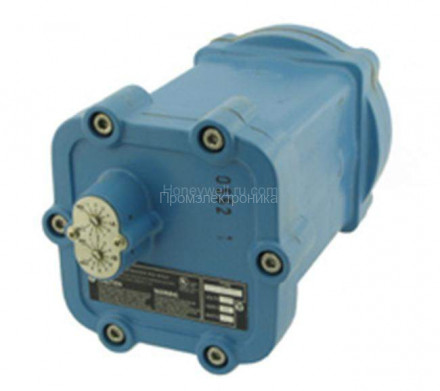

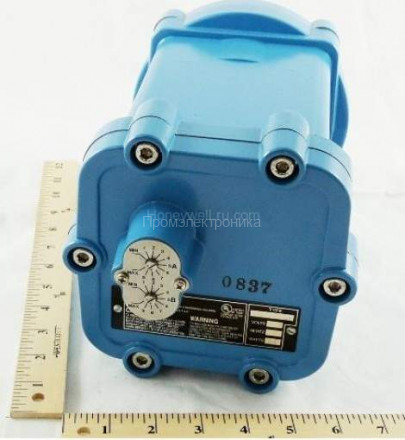

Honeywell C7076D1027 - датчики пламени для использования с промышленными контроллерами Honeywell
C7076D имеет взрывозащищенный корпус для использования во взрывоопасной атмосфере с смотровым окном
Product Specifications
- Application
- Gas fired burners; Oil fired burners
- Dimensions (in.)
- 6 5/8 in. high x 6 3/16 in. wide x 11 3/4 in. deep
- Dimensions (mm)
- 168 mm high x 158 mm wide x 300 mm deep
- Used With
- Flame Amplifiers: R7476, R7886
- Weight (lb)
- 17.6 lb
- Weight (kg)
- 8 kg
- Comments
- Dynamic self-checking flame detector with adjustable sensitivity
- Mounting
- 1 in. NPT
- Electrical Ratings
- 120 Vac
- Frequency
- 60 Hz
- Approvals, Underwriters Laboratories Inc.
- Listed: File No. E34649, Guide No. ZTSZ
- Approvals, Canadian Standards Association
- Certified: Master Report LR1620
- Electrical Connections
- Terminal block
- Power Consumption
- 7.0 W
- Vibration
- 0.5 G max
- Approvals, Swiss RE
- Acceptable
- Approvals, Factory Mutual
- Approved: Report No. FM26980
- Approvals, Others
- Explosion Proof
- Ambient Temperature Range (F)
- -40 F to +160 F
- Ambient Temperature Range (C)
- -40 C to +71 C
- NEMA Rating
- NEMA 7
