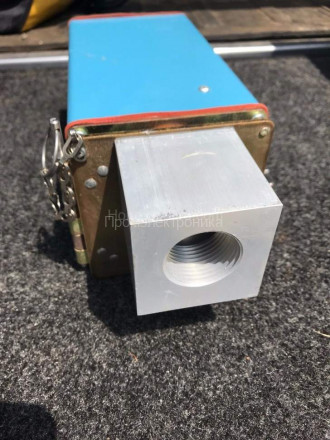

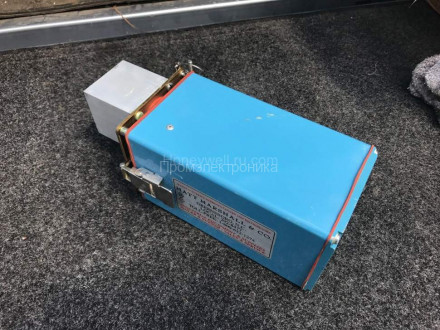

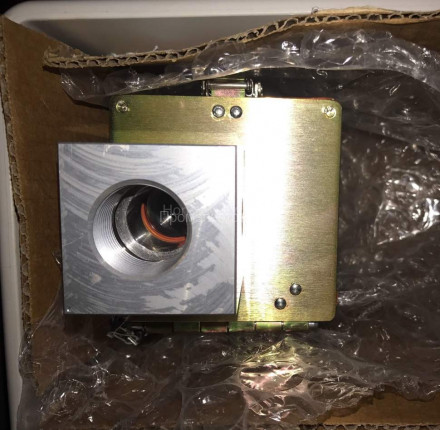

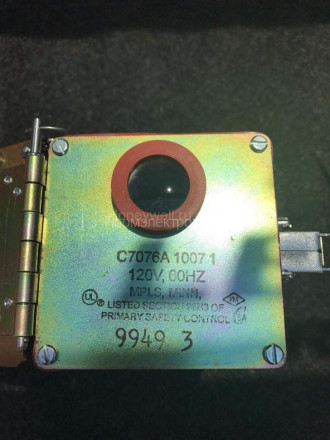

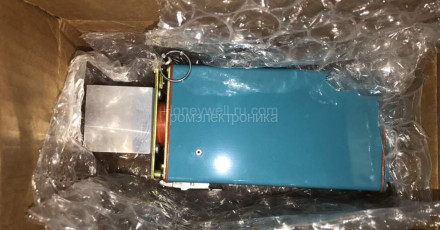

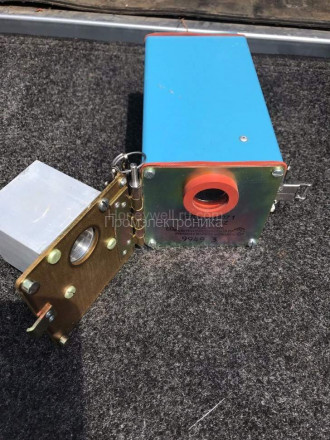

Датчик пламени Honeywell C7076A1031

Honeywell C7076A1031-  датчики пламени для использования с  промышленными контроллерами Honeywell

Product Specifications

Application

Gas fired burners; Oil fired burners

Dimensions (in.)

4 in. high x 4 in. wide x 10 1/4 in. deep

Dimensions (mm)

102 mm high x 102 mm wide x 261 mm deep

Used With

Flame Amplifiers: R7476, R7886

Weight (lb)

6.6 lb

Weight (kg)

3 kg

Comments

Dynamic self-checking flame detector with adjustable sensitivity

Mounting

1 in. NPT

Electrical Ratings

220 Vac; 240 Vac

Frequency

50 Hz; 60 Hz

Approvals, Underwriters Laboratories Inc.

Listed: File No. MP268, Guide No. MCCZ

Approvals, Canadian Standards Association

Certified: Master Report LR1620

Electrical Connections

Terminal block

Power Consumption

7.0 W

Vibration

0.5 G max

Approvals, Swiss RE

Acceptable

Approvals, Factory Mutual

Approved: Report No. FM26980

Ambient Temperature Range (F)

-40 F to +160 F

Ambient Temperature Range (C)

-40 C to +71 C

NEMA Rating

NEMA 4
