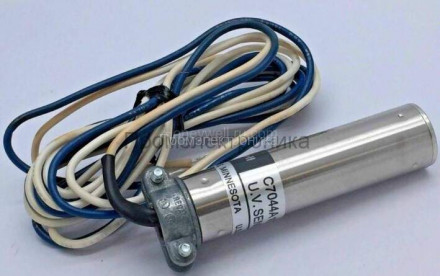

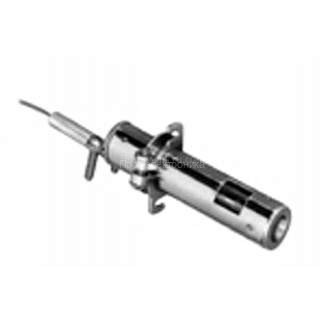

Honeywell C7044A1006 - датчик пламени для использования с системами контроля пламени с ультрафиолетовыми усилителями.
Product Specifications
- Application
- Coal fired burners; Gas fired burners; Oil fired burners
- Dimensions (in.)
- 7/8 in. diameter x 3 5/8 in. long
- Dimensions (mm)
- 22 mm diameter x 92 mm long
- Includes
- Mounting bracket
- Used With
- Flame Amplifiers: R7249A, B, R7849A, B, R7749B, R7259, R7290
- Comments
- Detects ultraviolet radiation in flames - Side Viewing
- Mounting
- Mounting Bracket provided
- Approvals, Underwriters Laboratories Inc.
- Listed: File No. MP268, Guide No. MCCZ
- Approvals, Canadian Standards Association
- Certified: Master Report LR95329-1
- Electrical Connections
- 2 NEC Class 1 lead wires
- Vibration
- 0.5 G max
- Approvals, Swiss RE
- Acceptable
- Approvals, Factory Mutual
- Approved: Report No. 24181.03
- Ambient Temperature Range (F)
- 0 F to 215 F
- Ambient Temperature Range (C)
- -18 C to +102 C
- Lead Length (in.)
- 72 in.
- Lead Length (mm)
- 1829 mm
