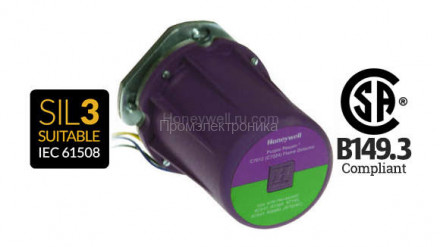

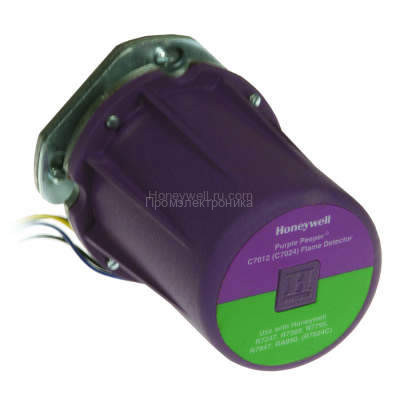

Honeywell C7012A1210 - датчики пламени для использования с контроллерами и усилителями от Honeywell.
Детекторы Honeywell C7012A1210 предназначены для обнаружения ультрафиолетового излучения, образующегося при сжигании газа, нефти, угля или других видов топлива.
Установка возможна горизонтально, вертикально или под любым углом .
Product Specifications
- Application
- Coal fired burners; Gas fired burners; Oil fired burners
- Dimensions (in.)
- 5 1/4 in. diameter (includes mounting flange) x 7 7/32 in. long
- Dimensions (mm)
- 133 mm diameter (includes mounting flange) x 183 mm long
- Includes
- Cast case and cover
- Used With
- Flame Amplifiers: R7247A, R7847A, R7257
- Weight (lb)
- 4.25 lb
- Weight (kg)
- 1.9 kg
- Comments
- For use with rectification flame signal amplifiers
- Mounting
- 3/4 in. NPT
- Electrical Ratings
- 120 Vac
- Frequency
- 50 Hz; 60 Hz
- Approvals, Underwriters Laboratories Inc.
- Listed: File No. MP268, Guide No. MCCZ
- Approvals, Canadian Standards Association
- Certified: Master Report LR95329-1
- Electrical Connections
- 4 NEC Class 1 Color-coded lead wires.
- Power Consumption
- 2.5 W
- Approvals, Swiss RE
- Acceptable
- Approvals, Factory Mutual
- Approved: Report No. 14740.01
- Ambient Temperature Range (F)
- 25 F to 175 F
- Ambient Temperature Range (C)
- -4 C to +79 C
- NEMA Rating
- NEMA 4
- Lead Length (in.)
- 96 in.
- Lead Length (mm)
- 2438 mm
