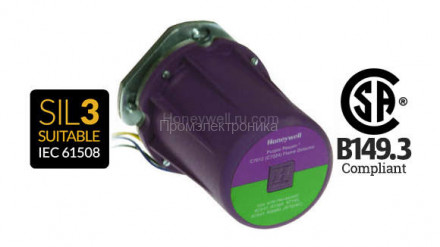

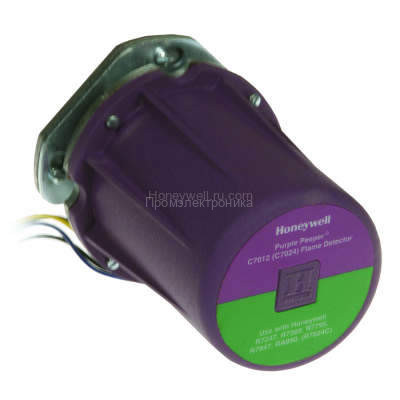

Датчик пламени Honeywell C7012A1152

Honeywell C7012A1152 - датчики пламени для использования с контроллерами и усилителями от Honeywell.

Детекторы Honeywell C7012A1152 предназначены для обнаружения ультрафиолетового излучения, образующегося при сжигании газа, нефти, угля или других видов топлива.

Установка возможна горизонтально, вертикально или под любым углом

Product Specifications

Application

Gas, Oil or Coal fired burners

Dimensions (in.)

5 1/4 in. diameter (includes mounting flange) x 7 7/32 in. long

Dimensions (mm)

133 mm diameter (includes mounting flange) x 183 mm long

Includes

Cast case and cover

Used With

Flame Amplifiers: R7247A,B; R7847A,B; R7257

Weight (lb)

4.25 lb

Weight (kg)

1.9 kg

Comments

For use with rectification flame signal amplifiers

Mounting

1 in. NPT

Electrical Ratings

120 Vac

Frequency

50 Hz; 60 Hz

Approvals, Underwriters Laboratories Inc.

Listed: File No. MP268, Guide No. MCCZ

Approvals, Canadian Standards Association

Certified: Master Report LR95329-1

Electrical Connections

4 NEC Class 1 Color-coded lead wires.

Power Consumption

2.5 W

Approvals, Swiss RE

Acceptable

Approvals, Factory Mutual

Approved: Report No. 14740.01

Ambient Temperature Range (F)

25 F to 175 F

Ambient Temperature Range (C)

-4 C to +79 C

NEMA Rating

NEMA 4

Lead Length (in.)

96 in.

Lead Length (mm)

2438 mm
